CT-17
This is a portable type of fiber endface inspector developed by Dimension Technology. By magnifying 200~400 time of the objects, you can identity defects and scratches on the endface of connectors. It is the best choice for endface inspection. Easyget comes along with portable 3.5 inch high resolution LCD monitor, it can work over 8 hours after recharge. There are also
all kinds of tips which make Easyget to meet different requirements on inspecting.
Main Features
•Compact probe, portable monitor
•Focus ring, easy to operate
•High image quality
•Optional 200X,400X magnification
•Series of adaptor designed for connectors including MPO
•8 hours durable after fully charged
Applications
•5G optical network construction and maintenance
•Data centers
•High reliability fiber connections
•Laboratory and manufacturing tests
Ø Longer Life, Better Image Quality
This is a portable type of fiber endface inspector developed by Dimension Technology. By magnifying 200~400 time of the objects, you can identity defects and scratches on the endface of connectors. It is the best choice for endface inspection. Easyget comes along with portable 3.5 inch high resolution LCD monitor, it can work over 8 hours after recharge. There are also
all kinds of tips which make Easyget to meet different requirements on inspecting.
Main Features
•Compact probe, portable monitor
•Focus ring, easy to operate
•High image quality
•Optional 200X,400X magnification
•Series of adaptor designed for connectors including MPO
•8 hours durable after fully charged
Applications
•5G optical network construction and maintenance
•Data centers
•High reliability fiber connections
•Laboratory and manufacturing tests
Ø Longer Life, Better Image Quality
Anti-dust and anti-moisture design help EasyGet 2 maintaining good image quality and working for longer life time. The microscope is well protected to work even in harsh environment.
Ø Stable and Durable Connection
EasyGet 2 uses aviation electrical plugs to replace USB connector in previous version. Reliable electrical connection ensures the stable image quality in various working environment.
Ø New Data Capture Card and Software
The new capture card is compatible for more operation systems and maintains the high image quality. The image capture software helps to display the video stream on PC screen. The tools kits to edit, save and upload are also provided to manage the inspection results. EasyGet 2 is able to connect to desktop monitor as well.
Ø All Connector Inspection including MT

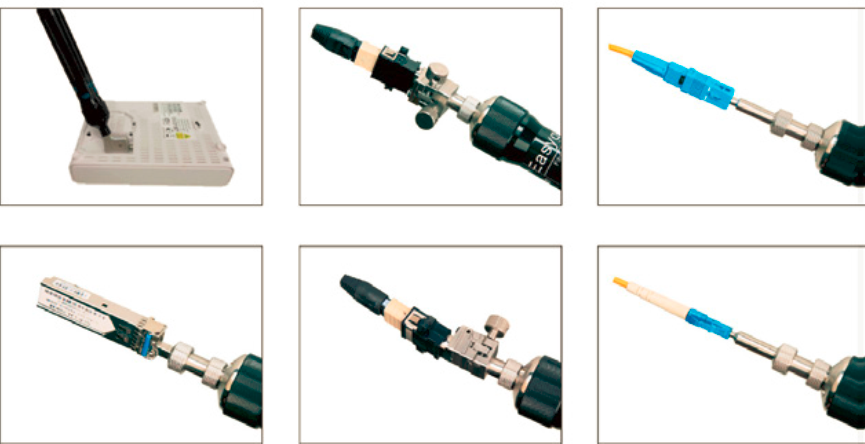

EasyGet 2 has equipped with various tips for ferrules, connectors, transceivers
modules (SFP, QSFP) and optical components (TOSA/ROSA). MT/MPO adapters
are designed for inspections on MPO and MTP connectors, 40G, 100G modules and so on. With long tips and ultra long tips, EasyGet 2 is suitable for maintaining high density data center of next generation.
Ø Curved Adaptor for EasyGet 2
To meeting the demanding from inspection on ADSL modem, curved adaptor is designed for EasyGet 2. If you have new device to inspect, we are ready to support.
Ø Compact and Portable
EasyGet2 is a handy tools for optical Fiber endface inspection on installation and maintenance. Hard shell case and soft case are optional.
Specifications
Item | Parameters |
Magnification | 400X or 200X |
Output | PAL |
Power Consumption | 3W |
Portable Monitor | 3.5″TFT |
Operation Temperature | -5℃~ +40℃ |
Storage Temperature - | -20℃~ + 55℃ |
Power Supply | Rechargeable 12V battery or DC IN |
Life time | 8h |
Size | Monitor 205mmX94mmX25mm; Microscope 23mmX160mm |
Model | Display size of 125um fiber core at 8” monitor | Range of sight at 8″monitor | Display size of 125umfiber core at 3.5″monitor | Range of sight at 3.5″monitor | Resolution |
200X | Φ44 mm | 340.9~454.5um | Φ20 mm | 312.5～425um | 2.5um |
400X | Φ58 mm | 258.6~344.8um | Φ26 mm | 240～327um | 1.5um |
