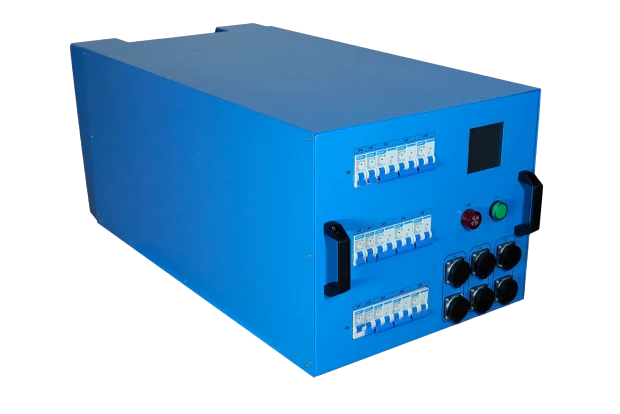

SAT-LCL Rack mounted AC/DC liquid cooling load
With the water cooling of data centers, "liquid cooling" technology is the most reliable and feasible solution to reduce the energy consumption of data centers.
Contact Aitelong →
With the water cooling of data centers, "liquid cooling" technology is the most reliable and feasible solution to reduce the energy consumption of data centers. Liquid cooling load can simulate the actual heat generation and power consumption of real servers in the server room, detect the liquid cooling effect of the server room and the power safety of the server room lines, and provide data basis and testing methods for the reliability of the server room system. The liquid cooling load box adopts a modular design, which is easy to maintain and replace. It can be used alone or in parallel with multiple machines, and each gear can be adjusted.
- Load simulation: can simulate the actual heating situation of the server in the computer room, cooling effect, power supply load capacity, line reliability verification, etc.;
- Control mode: can control the load power increase/decrease through a multi-position switch;
- Temperature protection: when the load temperature exceeds the set safety threshold, an audible and visual alarm prompts;
- Monitoring function: the device can be equipped with an LCD display to display the temperature, flow rate, alarm and other information of the inlet and outlet water;
- Parallel expansion: can realize parallel testing of multiple loads to meet the needs of high-power testing.
Rated voltage/frequency | AC three-phase, single-phase voltage:220V/50Hz DC 270V |
Rated power | 36KW (single-phase 12kW@ AC220V/50Hz) Load step：1kW、2kW、3kW、3kW、3kW;(A、B、C three steps) When the voltage changes, the gear power changes based on AC220V according to Ohm's law. |
Load materials | PTC |
Power factor | 1 |
Heat transfer efficiency | ≥95% |
Fully load accuracy | Accuracy≤±5% |
Main circuit power interface | 2 per phase, interface with protective cover |
Load Method | Gear switch (miniature circuit breaker)，manual loading |
Power control | Adopt the power interface under test for power supply |
Isolation level | AC1000V，isolation resistance ≥10MΩ |
Inlet water temperature | 2-100° |
Water interface | 1 inlet pipe and 1 return pipe, clamp-type quick connector, pipe diameter: DN25 |
Pressure | Liquid cooling container or resistor withstands 1.0MPa working pressure, and the ultimate test pressure is 1.5 times the working pressure |
Airtightness | No leakage for 2 hours under 1Mpa pressure |
Water flow | 1-10m3/h |
Cooling method | High grade pure water cooling |
Isolation grade | F |
Protection grade | IP24 |
Working method | Continuous working |
Pipe material | Stainless steel 304 |
Pannel display | The load panel has a power working indicator light and a fault alarm indicator light. It has an inlet and outlet water temperature sensor to display the temperature and current, voltage, and power data (LED instrument), and the sensor accuracy is 0.5 level. |
Over-heat protection | The load carries the water temperature monitoring of the inlet and outlet. When the water temperature is abnormal, the alarm prompts and the load is unloaded. The upper limit of the inlet and outlet temperature alarm is adjustable (default: 80℃) |
Overcurrent protection | When the switch is in overcurrent protection, the switch trips and cuts off the overcurrent load; |
Grounding protection | The ground wire of the load input port is connected to the chassis, and the chassis grounding terminal is for users to use for grounding. |
Short circuit protection | The load short-circuit switch trips and cuts off the load |
Load modular design | The load adopts modular design and can be used as a single module or in parallel |
Size | 430mm*720mm*289mm(L*W*H) blue |
Weight | 55kg |
Transportation | The side is equipped with lifting handles for easy transportation; |
Working temperature | -15℃～+70℃ |
Relative humidity | 0-95%RH，Non-condensing |
Altitude | ≤2500m |
Atmospheric pressure | 86～106kPa |
Installation conditions | For indoor use, no flammable gas around |
