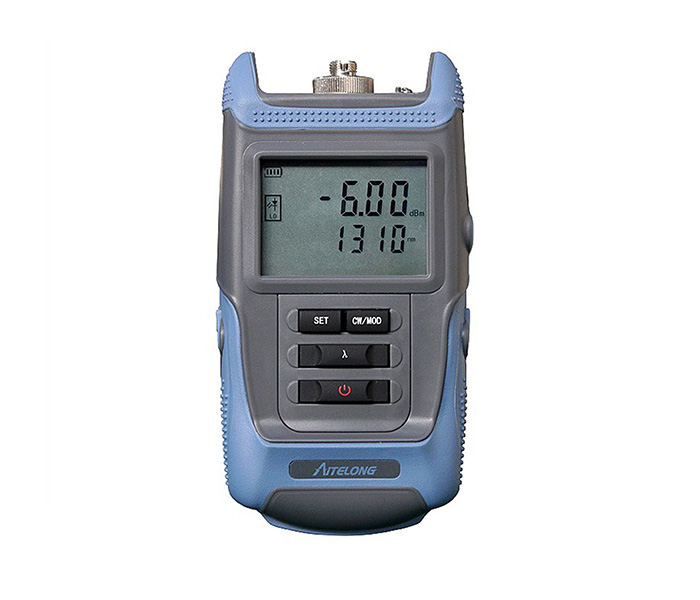

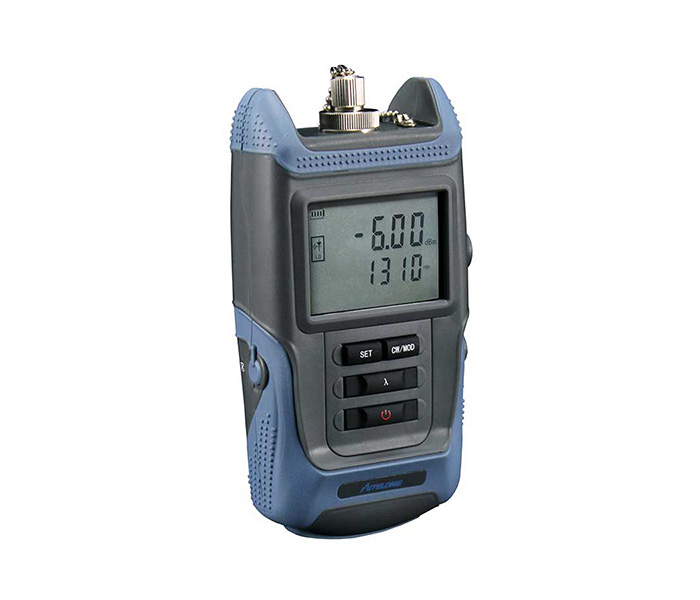

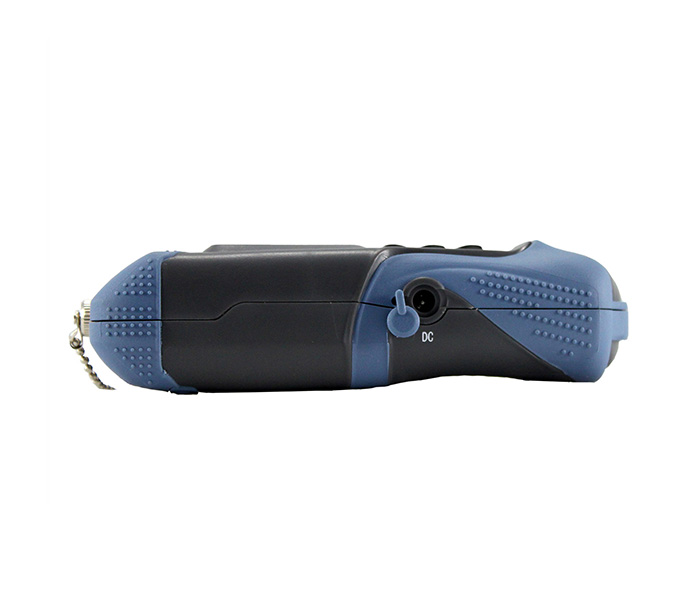

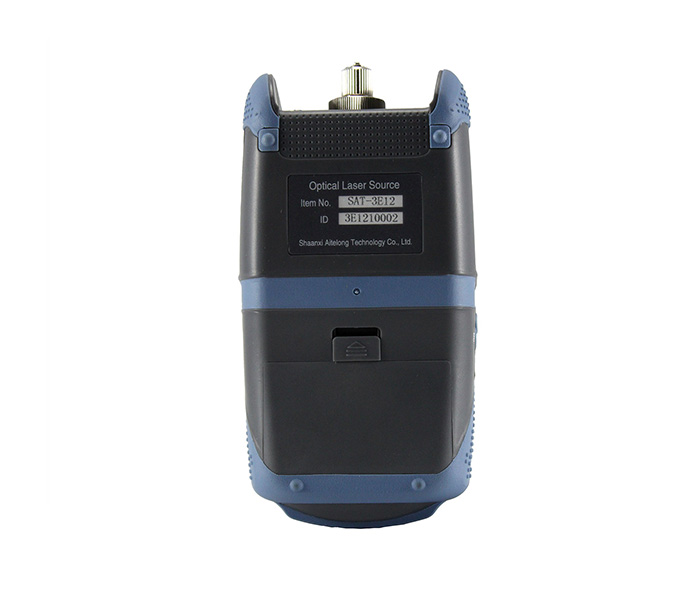

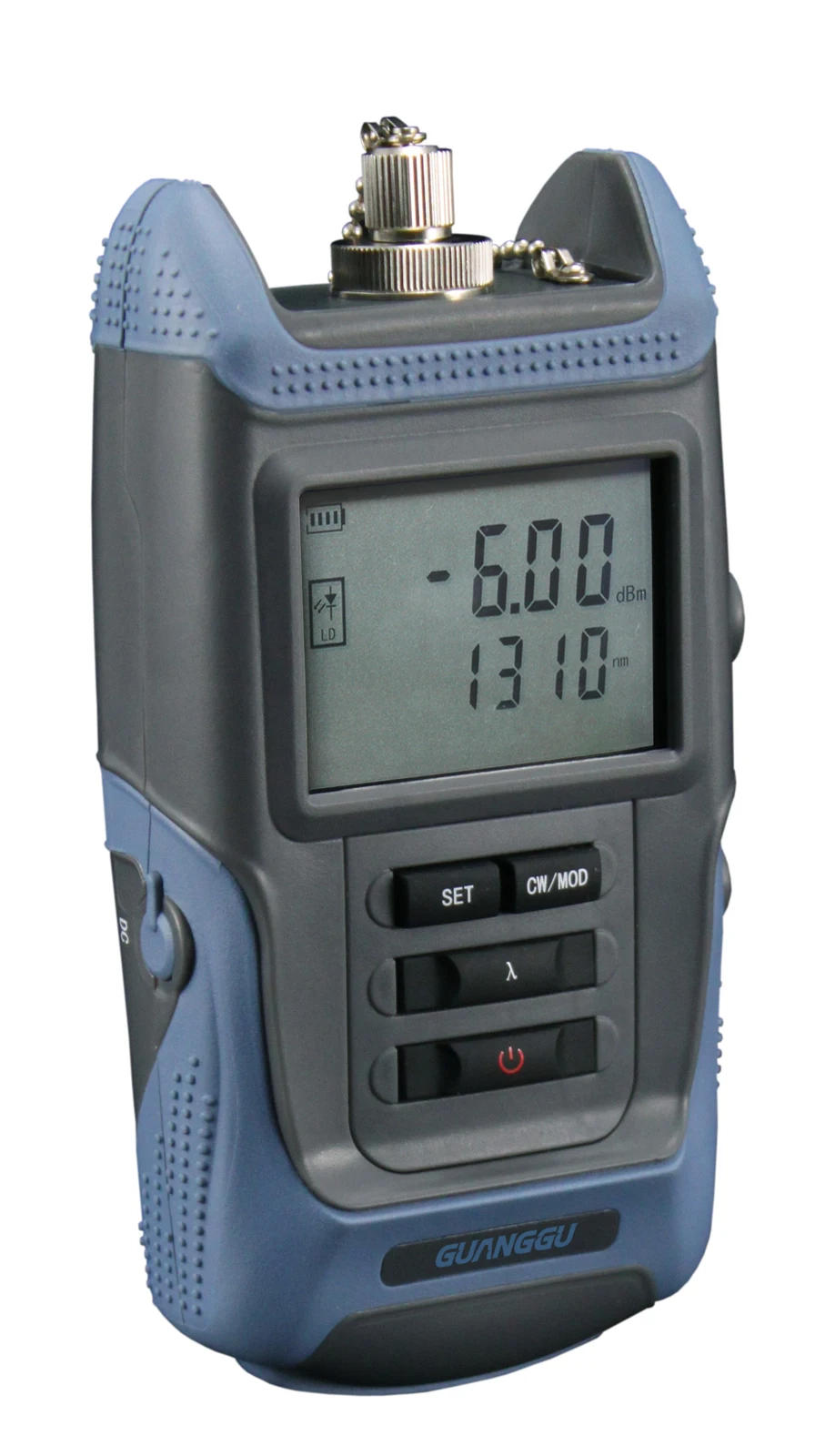

SAT-3E Optical Laser Source
SAT-3E

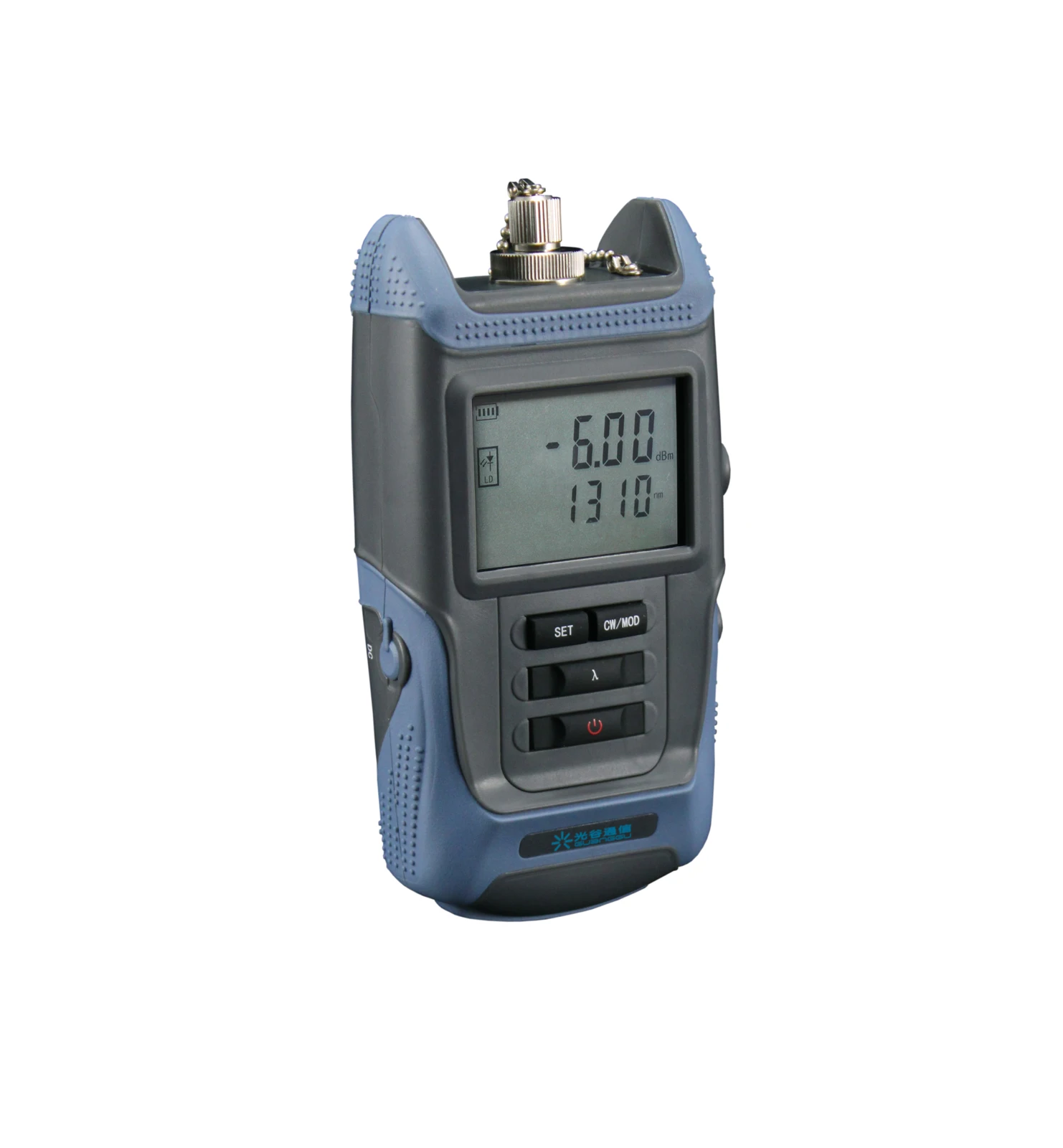

SAT-3E Optical Laser Source
High sensitivity, multi output power Multi wavelengths optional, up to four wavelengths on two ports Automatic power-off, off time setting range 30~90mins
Contact Aitelong →Key Features
- High sensitivity, multi output power
- Multi wavelengths optional, up to four wavelengths on two ports
- Automatic power-off, off time setting range 30~90mins
- Low battery alarm
- LCD display
- New-type conductive rubber switch, suitable for different operation environments.
3E 3E04 3E05 3E06 3E07 3E08 | |
Working Wavelength(nm) | 1310/1550nm |
Output Power (dBm) | 850/1300/1310/1550/1490/1625: -6 (error:±0.2) |
Output Tone | 850/1300/1310/1550 /1490/1625: CW, 270Hz, 1KHz, 2KHz; 650: CW |
Spectrum Width | ≤ 5nm |
Output Stability | ±0.03dB/15min; ±0.05dB/8H |
Optical Identity Distance | 5km; 10km/15km optional (650nm) |
Display | LCD |
Optical Interface | FC, SC, ST |
Power Supply | AA alkaline batteries |
Operating Temperature | -10---+50°C |
Size | L*H*W:140*72*38mm, 0.3kg |
