CS-01 Optical Fiber Cleaver with Thermal Stripper
CS-01

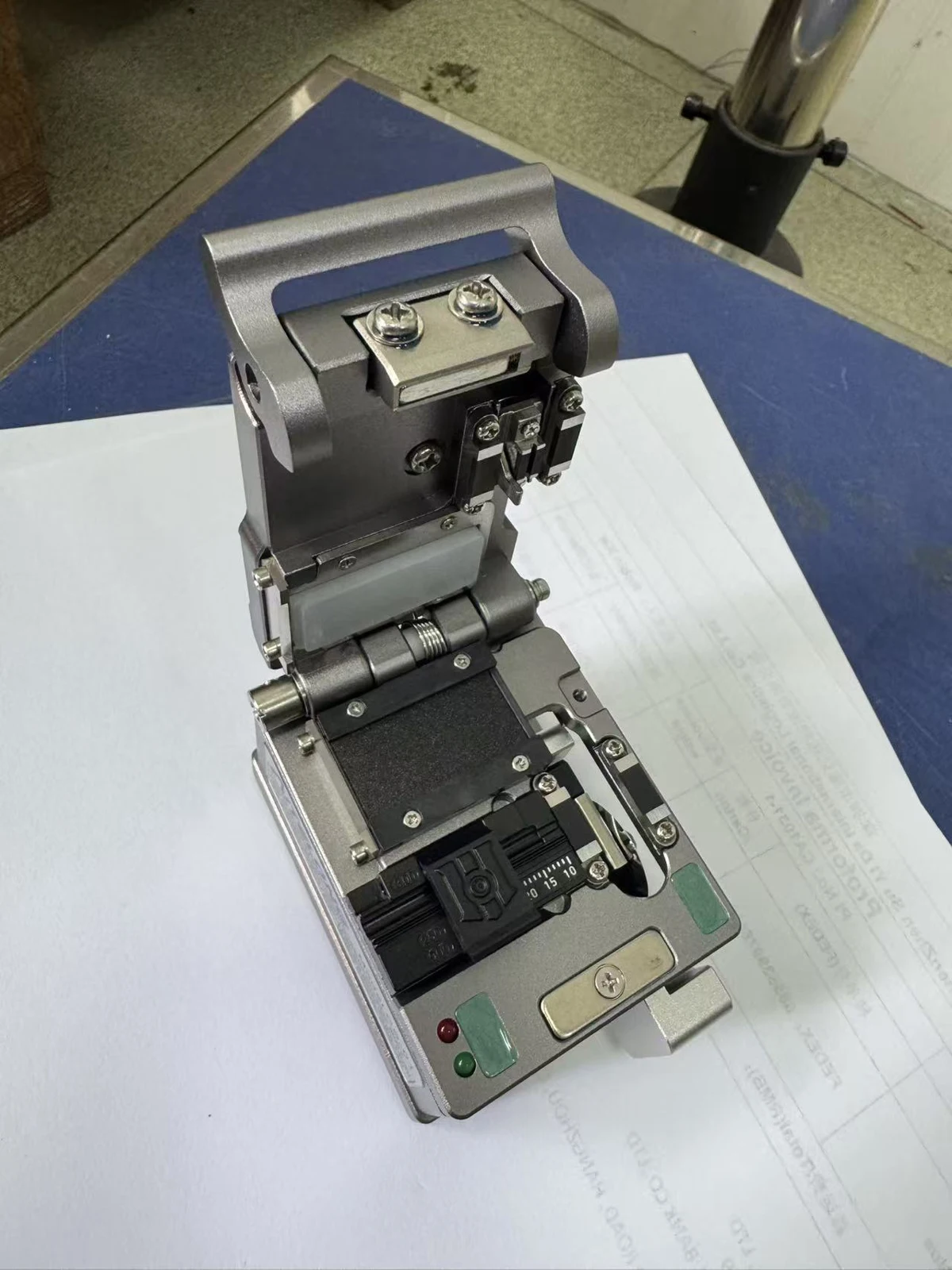

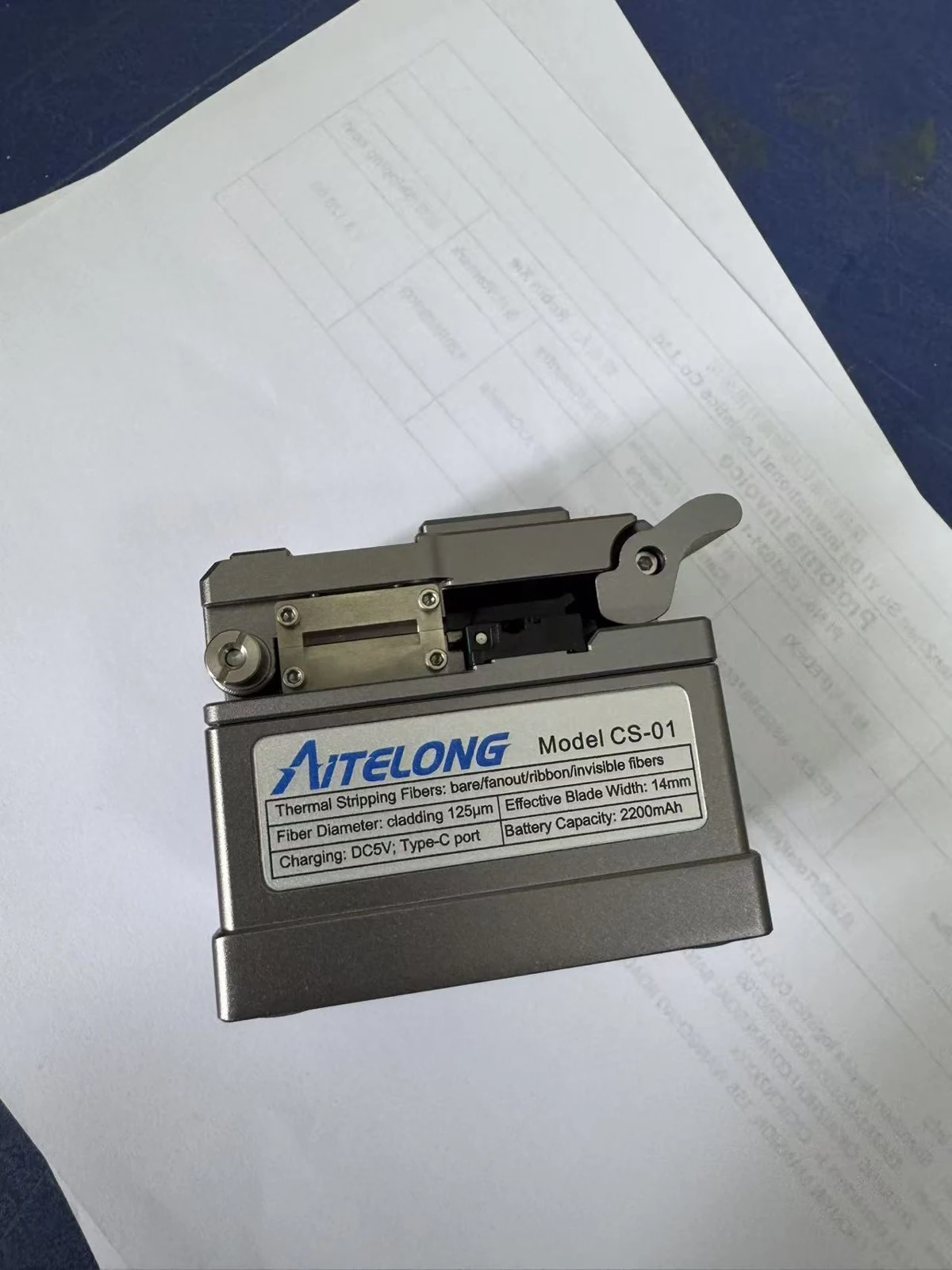

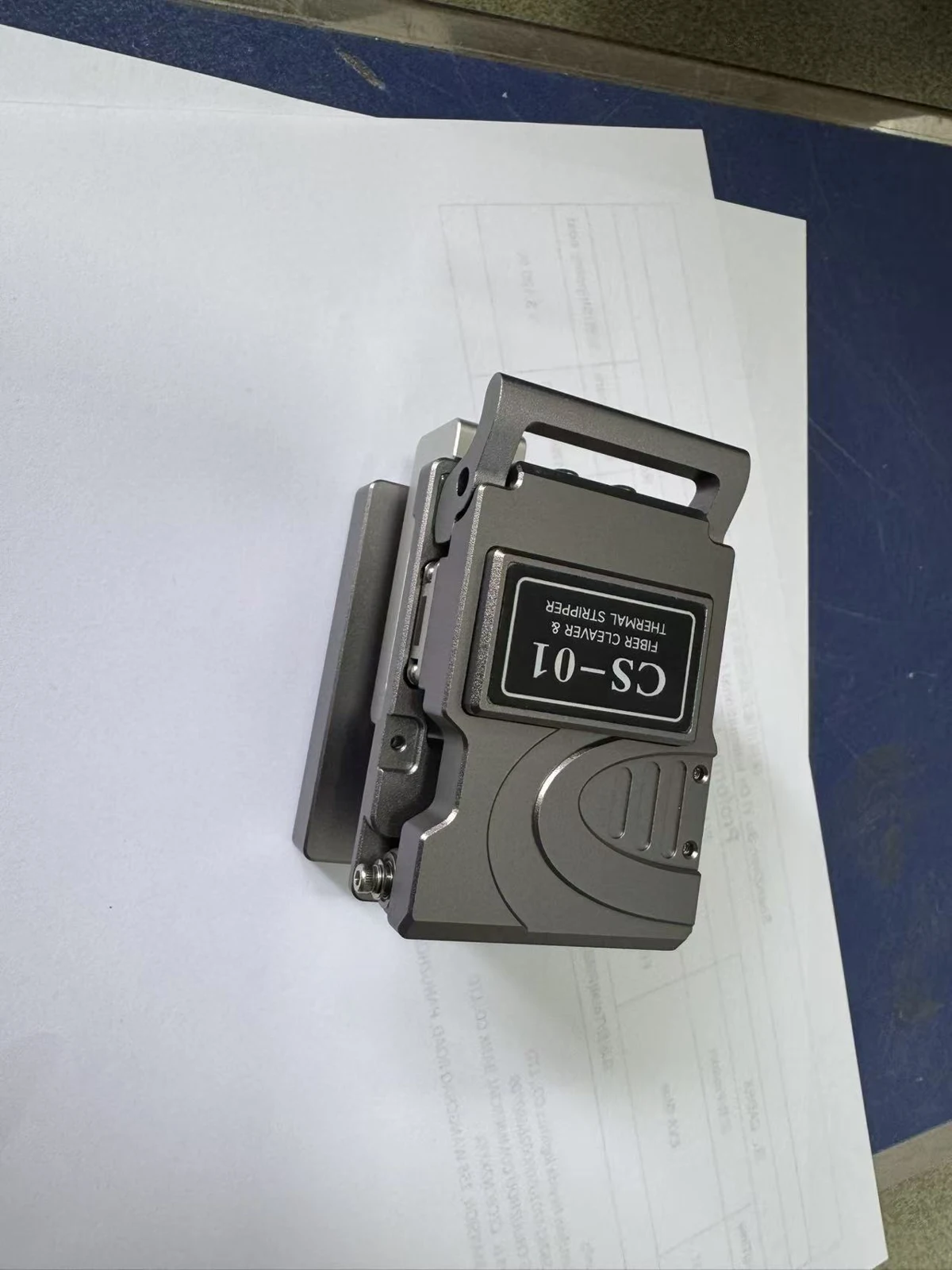

CS-01 Optical Fiber Cleaver with Thermal Stripper
Use ribbon fiber holder can realize cleave 12 cores and strip 12 cores simultaneously, improve working efficiency
Contact Aitelong →Key features
- 2-in-1 multifunction cleaver can operation fiber cutting
and thermal stripping by only one machine
- CNC machining with all mental machine body,
fine workmanship
- Small size, user-friendly
- Built-in 2200mAh battery, type-C charging port
- 3 gears of temperature settings
- Use ribbon fiber holder can realize cleave 12 cores and strip 12 cores simultaneously, improve working efficiency
Cladding Diameter | 125μm |
Applicable Fiber Type | Fanout fiber /bare fiber/ribbon fiber/ invisible fiber |
Cutting Length | 10~20+mm (Visual); 5~20+mm (Estimable) |
Average cutting Angle | ≤0.6° |
Fiber Holder | 4-in-1multifunction |
Battery Capacity | 7.4V /2200mAh |
Temperature Gears | 145℃/160℃/70℃ |
Countdown time | 5 secs |
Auto Power Off | 10 mins |
Power Supply | 5V 1A ，Type-C charging Port |
Blade edge width | 14mm |
Dimension | 57W*83D*66H(mm) |
Weight | 450g |
Standard Configuration | Fiber Cleaver*1; Protection carry case *1; User Manual (QR code) *1; Brush *1; Allen Wrench*2; USB Charging cable*1; Warranty Card*1 |
Optional Accessories | Fiber Off-cut Collector; Ribbon Fiber Holder |
