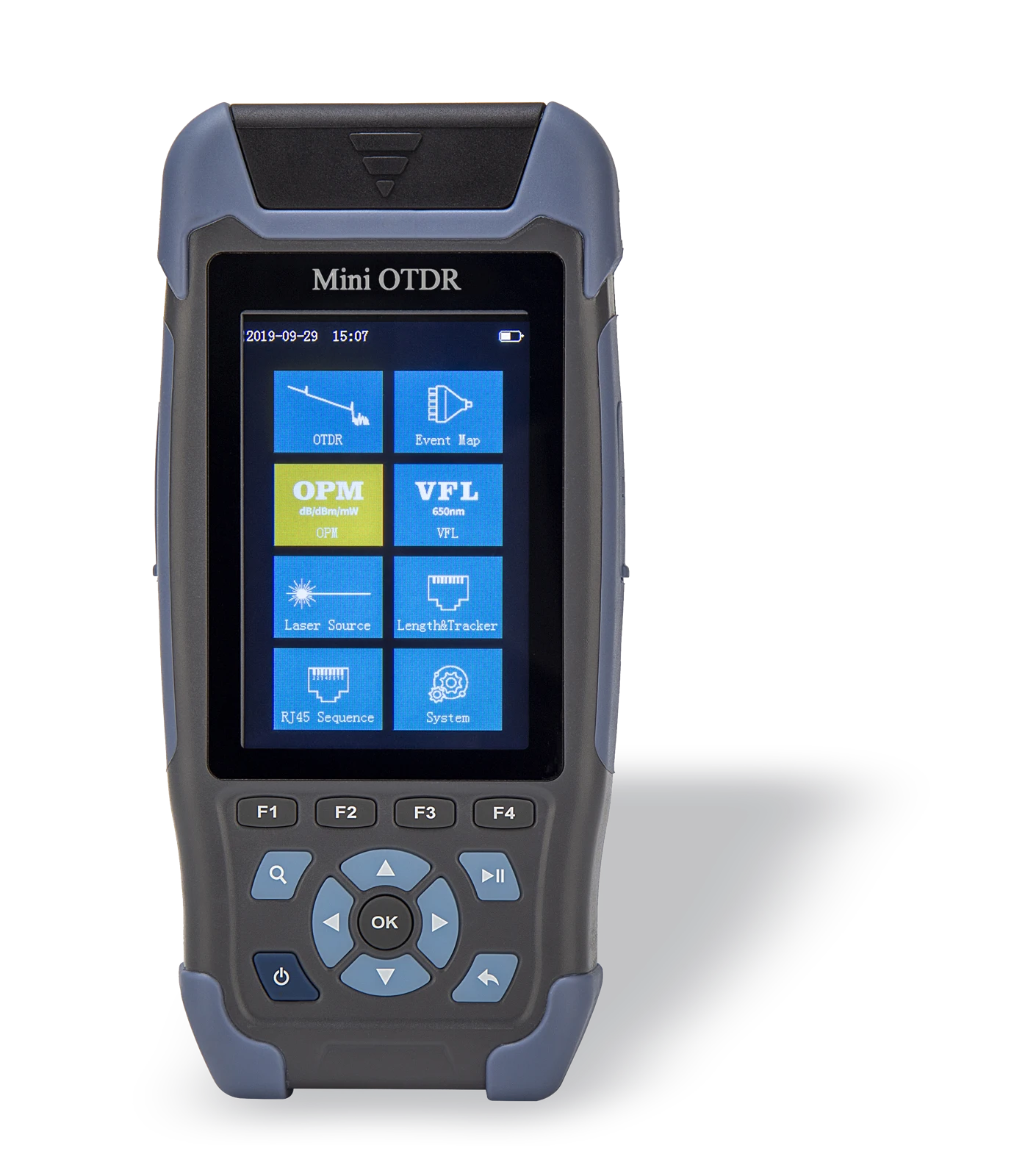

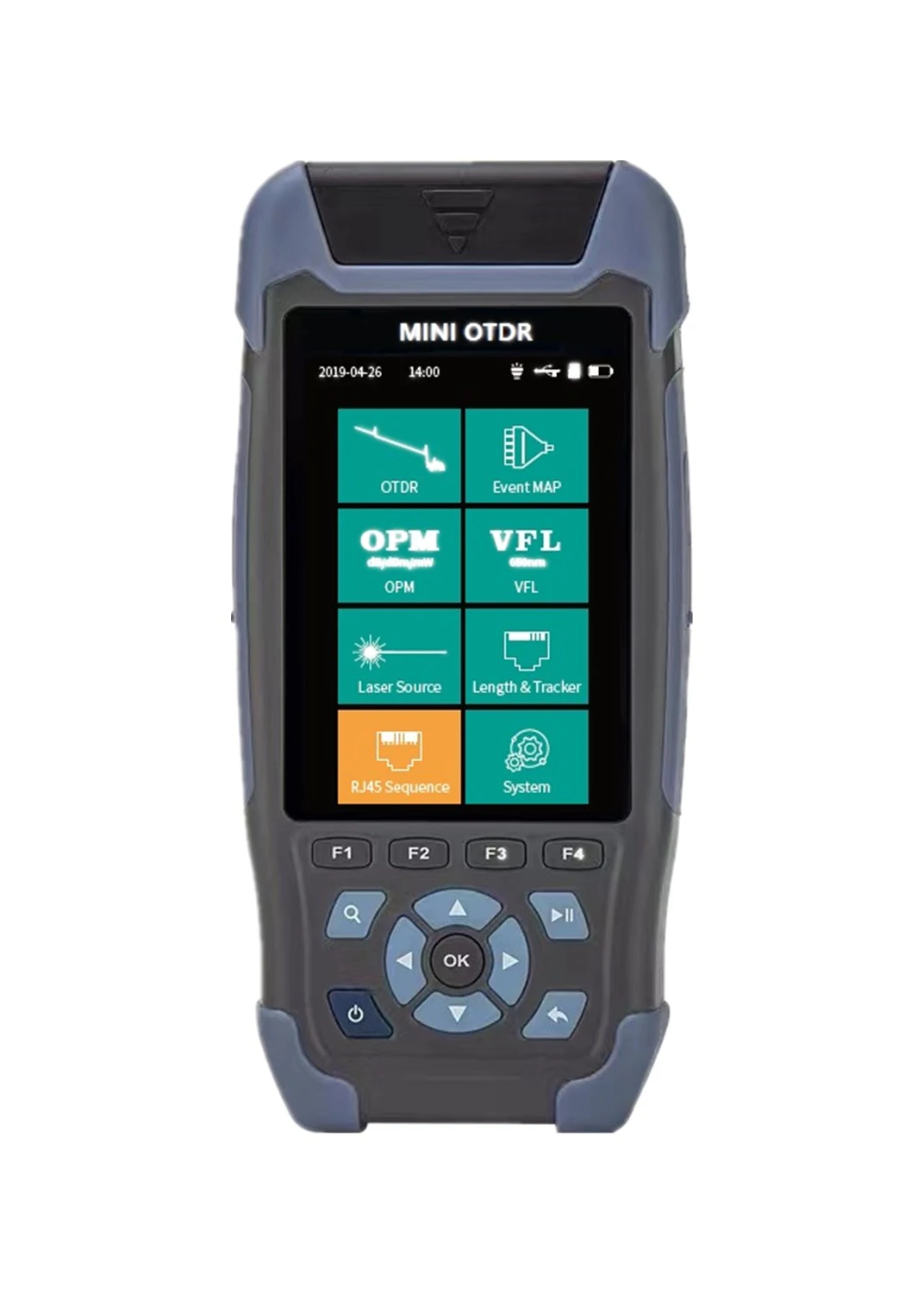

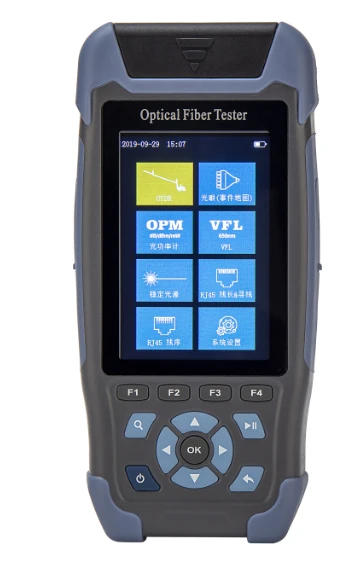

SAT-18EXB Mini OTDR

Applicable Scenarios 1. Access Network (FTTx/FTTH) 2. Metro Network (Short to Medium Span) 3. Data Center & Equipment Room 4. Field Deployments & Emergency Restoration 5. Industry Specific Networks (Power, Railway, Metro) 6. Pre-construction Survey & Preliminary Acceptance

Key Features

• Suitable for FTTx and other access network, test fiber’s length, loss, breakpoint etc.
• 3.5“colorful LCD screen, utral-light design for easily carrying,
• 8 in 1: OTDR, OLS, OPM, VFL, iOTA(Event Map),RJ Sequence, RJ length and LED Lighter.
• Universal connector: FC/SC/ST/LC for choice.
• Large internal storage with 600 results, and extensible TF card, USB wire can upload the testing results to PC for printing.
• Built-in 4000mAh li-ion rechargeable battery, can charge by any USB charger, suitable for long-term field working.

Screen	3.5“Colorful LCD screen
Connect Port	FC/UPC(SC、ST available)
Com. Port	Micro USB*1
Results Storage	Internal：≥600；External：TF Card; File type: SOR Standard file format
Battery Life	stand by>7.5h； testing >4h
Power Supply	3.7V, 4000mAh lithium battery; Power adapter:5VDC, 2A.
Working Environments	Working temperature: 0~+50℃，<95%RH
Dimensions/Weight	173mm*82mm*37mm, <350g

Dynamic Range		24/22dB
Wavelength		1310nm/1550nm±20nm
Fiber Type		SM (G.652)
Event Dead Zone		3m
Attenuation Dead Zone		8m
Pulse Width		3ns to10us
Distance Range		500m to 60km
Measurement Accuracy		± (1m+sample space+0.005%*measurement distance)
Linearity		±0.2 dB/dB
Sample Points		16k~128k
Sample Resolutions		0.05m~8m
IOR		±3dB
VFL	Output Power	10mW
	Wavelength	650±20nm
	Working Mode	CW/1Hz/2Hz
	Connect Port	FC/SC/ST
Power Meter	Wavelength	800nm to 1700 nm
	Calibrated wavelength	850/980/1300/1310/1490/1550/1625 nm
	Measurement range	-50 to +26 dBm
Laser Source	Working Wavelength	1310nm/1550nm±20nm
	Output Power	≥-5dBm
	Frequency	270Hz /330Hz /1kHz /2kHz
RJ45	Testing Distance	300m
