SAT-4E Optical Power Meter
SAT-4E

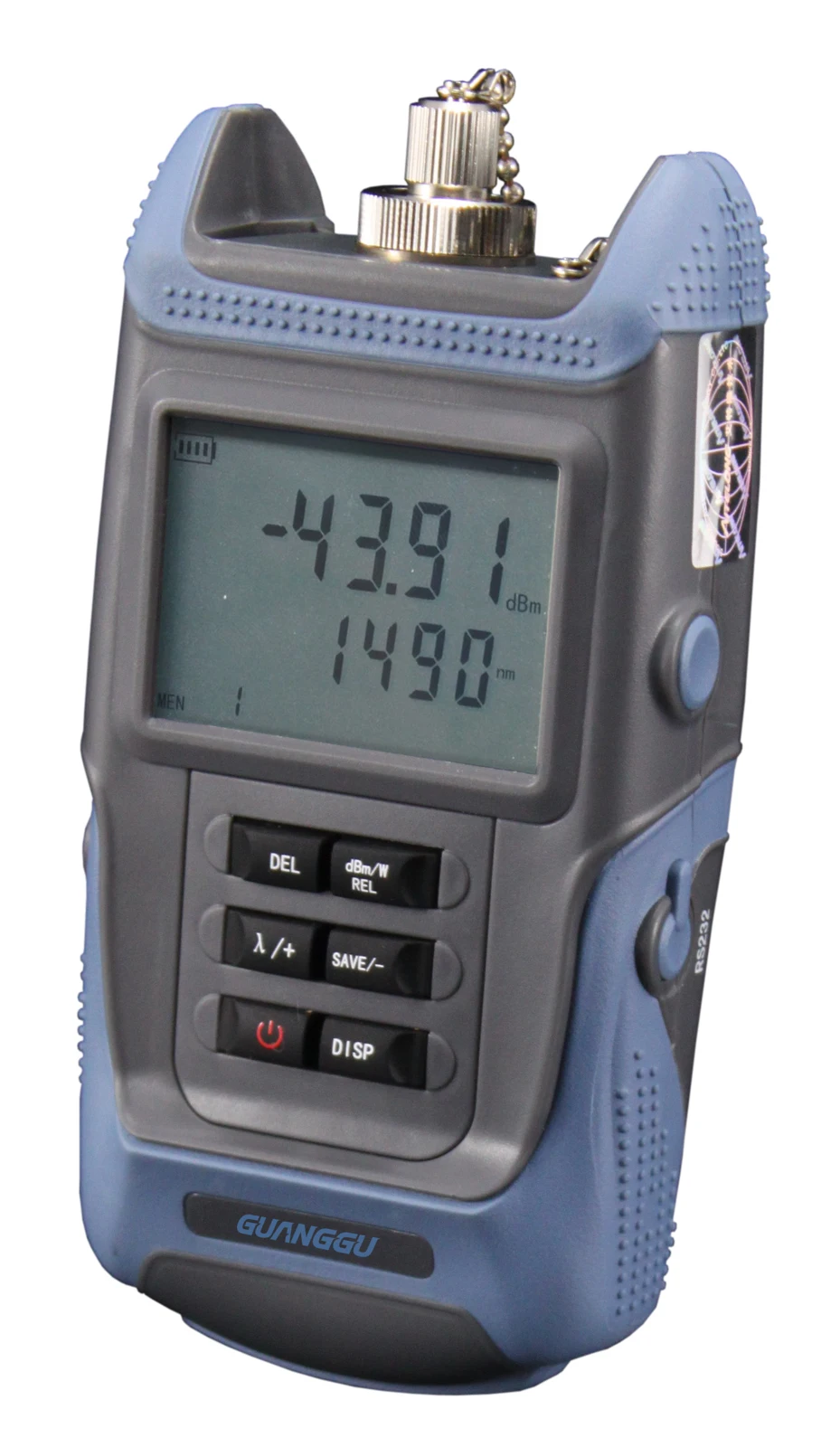

SAT-4E Optical Power Meter
SAT-4E optical power meter is an indispensable tool to identify fiber, measure fiber loss, verify continuity, and evaluate transmission performance, widely used in LAN, WAN, CATV, remote optical network, etc.Key features1). Wide dynamic range, up to 30dBm
2). Multi display units: nW, uW, mW, dBm, dB
3). Can store testing results up to 1000 groups
4). Low battery power alarming
5). Can transfer/download testing results to PC by USB cable (Optional)
6). Auto power OFF function
SAT-4E optical power meter is an indispensable tool to identify fiber, measure fiber loss, verify continuity, and evaluate transmission performance, widely used in LAN, WAN, CATV, remote optical network, etc.
Key features
1). Wide dynamic range, up to 30dBm
2). Multi display units: nW, uW, mW, dBm, dB
3). Can store testing results up to 1000 groups
4). Low battery power alarming
5). Can transfer/download testing results to PC by USB cable (Optional)
6). Auto power OFF function
Parameters | Unit | Technical index | ||
Model |
| SAT-4E01 | SAT-4E02 | |
Detector |
| InGaAS | ||
Wavelength | nm | 800~1700 | ||
Working Wavelength | nm | 850, 980, 1300, 1310, 1490, 1550, 1625 | ||
Dynamic Rang | dBm | -70~+10 | -50~+26 | |
W | 0.1nW~10mW | 10nW~400mW | ||
Measurement Accuracy |
| ±5% | ||
Optical Interface |
| FC, ST, SC; | ||
Resolution |
| dBm:0.01dBm W: (0.1~1)％ | ||
Power Supply |
| 2×1.5V alkaline cells | ||
Power-off Time |
| None or 5~60 minutes adjustable | ||
Power Consumption | mW | 30 | ||
Working Temperature | ℃ | -10~+50 | ||
Storage Temperature | ℃ | -40~+70 | ||
Dimension | mm | 140×72×38 | ||
Weight | Kg | 0.25 | ||
It is only for reference. The actual accessories and quantity are according to demand.
No. | Item | Qty. |
1 | SAT-4E1 series optical power meter | 1 set |
2 | User Manual | 1 pc |
3 | Attached disk | 1 pc |
4 | Delivery inspection record | 1 pc |
5 | Warranty Card/ Qualified certificate of products | 1 pc |
6 | Packing list | 1 pc |
7 | 1.5V 5# Alkaline dry battery | 2 pcs |
8 | DB9- headphone RS232 Serial port wire | 1 pc |
9 | ST, SC, FC adaptor | 1 pc per type |
10 | Portable Soft bag | 1 pc |
