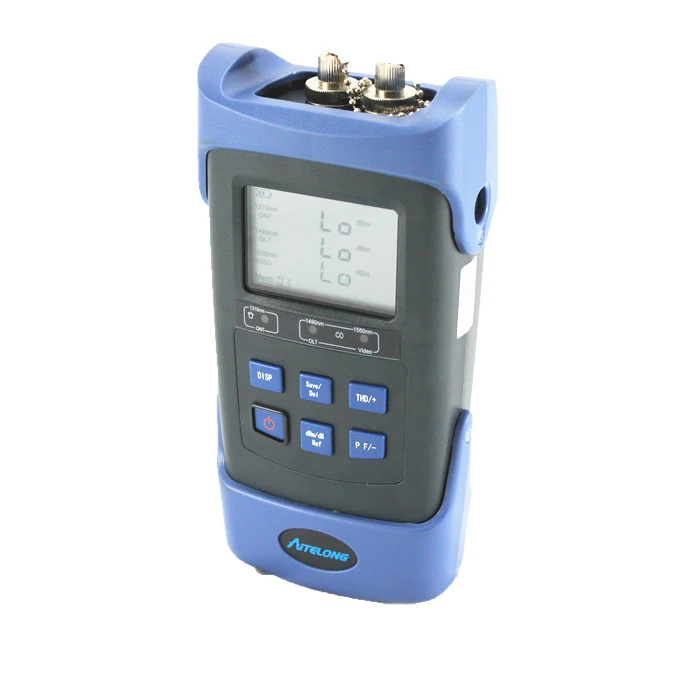

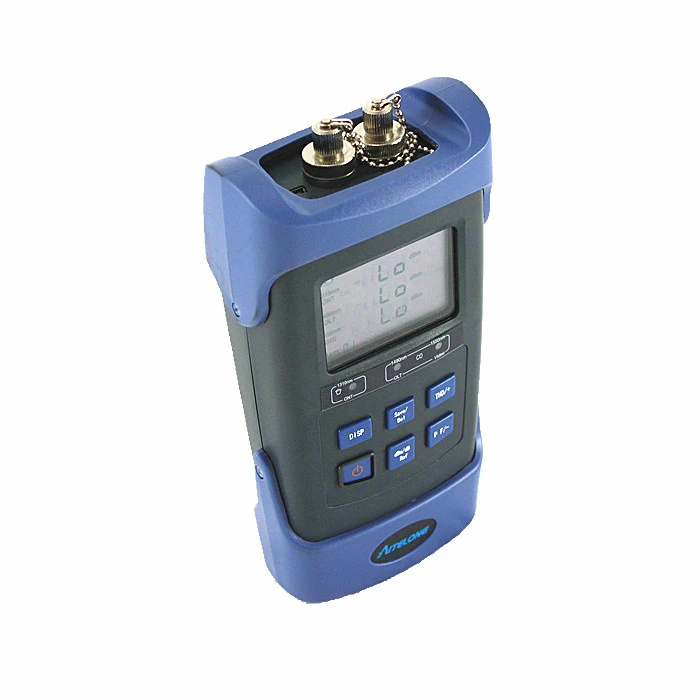

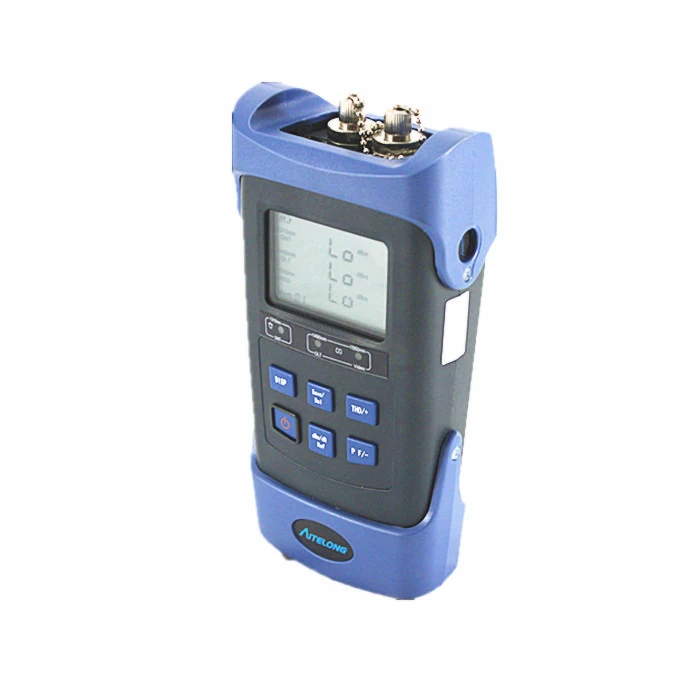

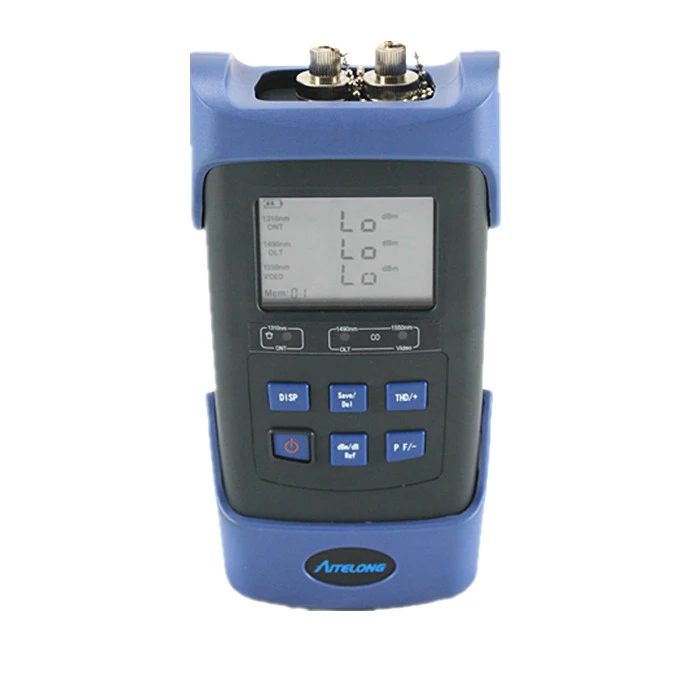

SAT-7E PON Power Meter

SAT-7E

SAT-7E PON Power Meter

PON power meter is part of most essential tool for all technicians installing or maintaining PON networks.

Contact Aitelong →

Download Product Datasheet ↓

PON power meter is part of most essential tool for all technicians installing or maintaining PON networks. PON power meters are well designed for all kinds of demanding applications on fiber measurement with different functions and parameters. With a rugged design, SAT-7E series PON power meters are built for top ruggedness and versatility, perfect for the harshest test conditions to verify the continuity and evaluated fiber link transmission quality.

Key Features

1. Automated PASS/FAIL assessment.

2. Quick and efficient visual inspection.

3. Providing distinct power values for 1310nm,1490nm,1550nm.

4.Pass through measurement.

5. Simultaneously measure and display the concurrent voice, data and video signals on different PON architectures.

6. Manual calibration.

7. One-year warranty and three-year recommended calibration interval.

Optical Power MetersSAT-4E

SAT-4E Optical Power Meter

SAT-4E optical power meter is an indispensable tool to identify fiber, measure fiber loss, verify continuity, and evaluate transmission performance, widely used in LAN, WAN, CATV, remote optical network, etc.Key features1). Wide dynamic range, up to 30dBm 2). Multi display units: nW, uW, mW, dBm, dB 3). Can store testing results up to 1000 groups 4). Low battery power alarming 5). Can transfer/download testing results to PC by USB cable (Optional) 6). Auto power OFF function

View Product

Optical Power MetersSAT-4EX

SAT-4EX Mini Optical Power Meter

1).LED Light 2). Wide measurement range, High resolution 3).SM or MM applications 4). 2.5mm universal connector 5).850/1300/1310/1490/1550/1625nm

View Product

Optical Power MetersSAT-4F

SAT-4F Optical power meter

SAT-4F series optical power meter is integrated function with power meter, RJ45 sequence, flashlight, laser source, RJ45 tracker etc., it’s mainly used for continuous optical signal power test, optical link loss test and continuity test.

View Product

Optical Power MetersSAT-4FWM

SAT-4FWM CWDM Optical Power Meter

CWDM optical power meter is a full-featured palm-sized CWDM optical network channel detector, which is mainly used to measure and monitor the power of up to 6 or 18 CWDM channels.

View Product

Measurement Range(dBm)	1310nm: -40---+10dBm; 1490nm:-50--+10dBm; 1550nm:-50--+25dBm
Pass Through Loss	< 1.5dB
Accuracy	±0.2 dB(burst signal:±0.5dB)
Threshold Sets	10
Data Storage	100
Connector	SC/PC(or customize)
Auto Power Off	No operation in 10 minutes(can be cancelled), low battery energy
Battery Charger	Yes
Connect to PC	Optional function
Manual Calibration	Yes
Operating Time	Above 36 hours
Power Supply	3xAA batteries or AC/DC power supply adapter
Size	L x H x W: 190 x 90 x 40mm,
Weight	About 450kgs
Storage Temperature	-20℃——+60℃, <90%RH
Operating Temperature	-10℃——+50℃, <90%RH
