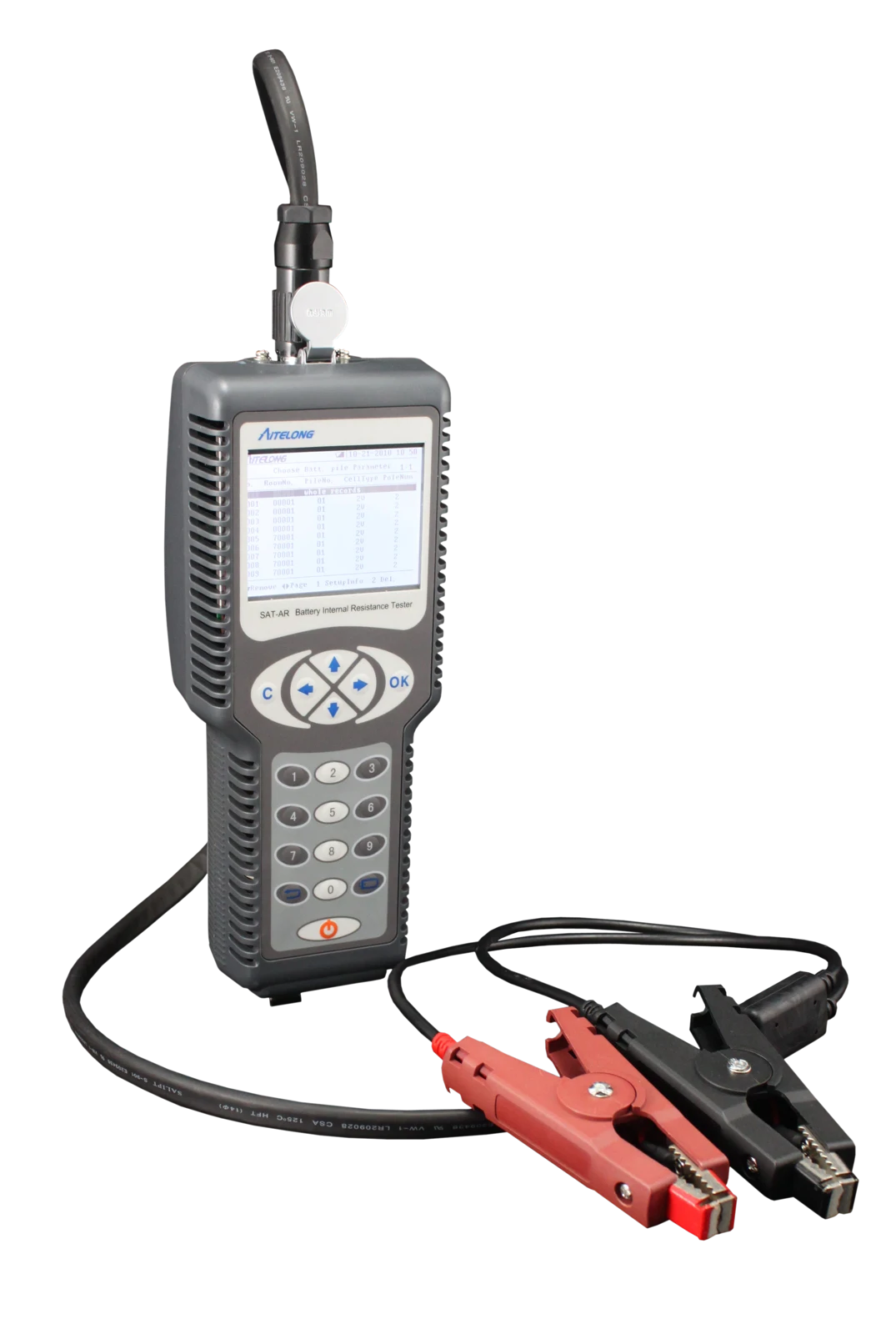

SAT-AC
• Test the battery voltage and conductance online. • Battery conductance and voltage out of range alarm. • All the battery parameters are marked by group No. to make the user manage the data expediently.
Contact Aitelong →• Test the battery voltage and conductance online.
• Battery conductance and voltage out of range alarm.
• All the battery parameters are marked by group No. to make the user manage the data expediently.
• PC software analysis the battery to carry out tracking historical analysis of battery system.
| Model | SAT-AC |
| Conductance Test Range | 100S-19990S |
| Voltage Test Range | 0.000~20.000V conductance & voltage 20.000~25.000Vvoltage only or warring |
| Measurement Precision | Conductance: ±0.5%, rdg:±6dgt |
| Voltage: ±0.2%, rdg: ±6dgt | |
| Power Supply | 10.8V,2000mAh, rechargeable lithium battery |
| Watt Consumption | Work for 8 hours continuously |
| Storage Capacity | 2G Micro SD |
| Display | 320 x 240 matrix dot LCD |
| Size | 210 x 140 x 60 mm |
| Weight | 1.2Kg |
| Working Temperature | -5℃~ +60℃ |
| Humidity | 90%RH |
