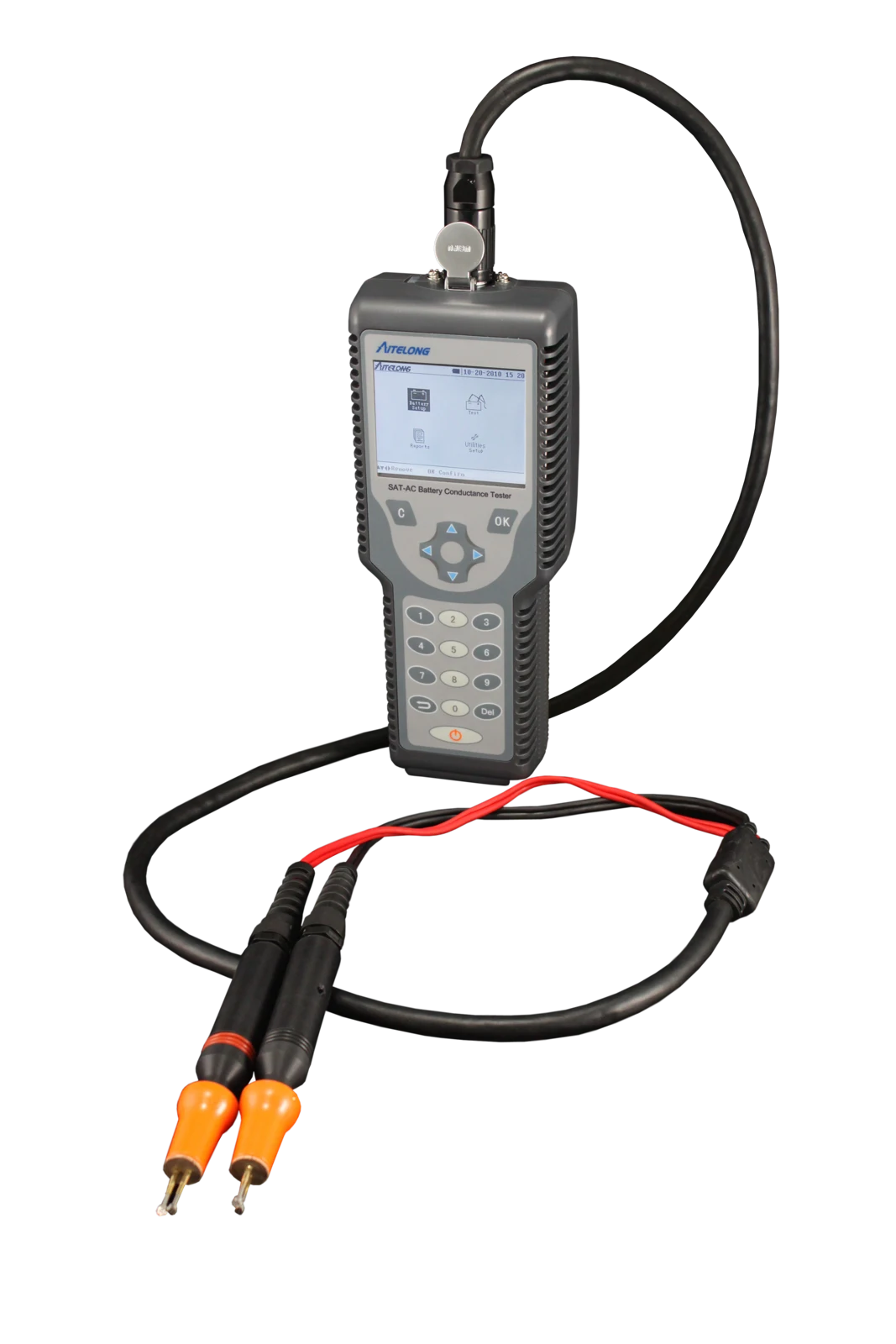

SAT-AR
1. Test the battery voltage and internal resistance online. 2. Battery internal resistance and voltage out of gauge alarm. 3. All the battery test results are marked by group no., user can manage the data conveniently.
Contact Aitelong →1. Test the battery voltage and internal resistance online.
2. Battery internal resistance and voltage out of gauge alarm.
3. All the battery test results are marked by group no., user can manage the data conveniently.
4. PC software analysis the battery according to the history data.
| Model | SAT-AR |
| Testing range | 0.000~20.000V internal resistance & voltage |
| 20.000~25.000Vvoltage only | |
| Testing voltage precision | ±0.2%rdg ±6dgt |
| Testing internal resistance range | 0.000mΩ-99.999mΩ |
| Testing internal resistance precision | ±0.5%rdg ±6dgt |
| Communication mode | SD card |
| Display | 320 x 240 LCD |
| Power supply | 10.8V,2000mAh, rechargeable lithium battery |
| Size | 280 x 105 x 83 mm |
| N．W | 1.2kg |
