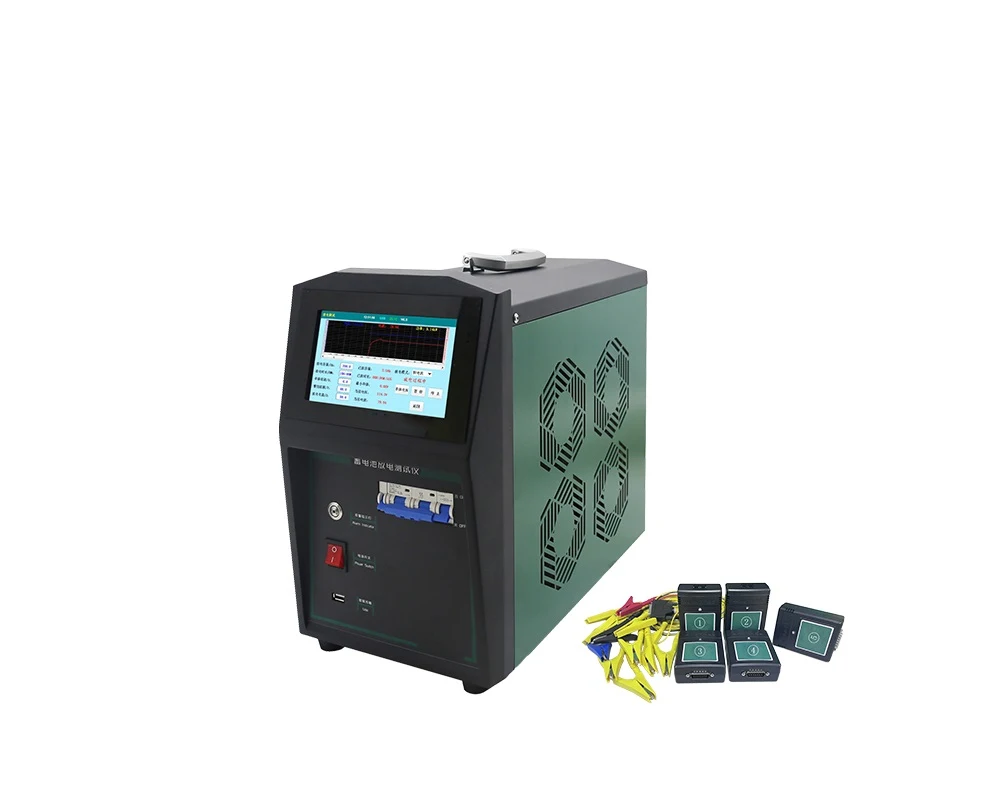

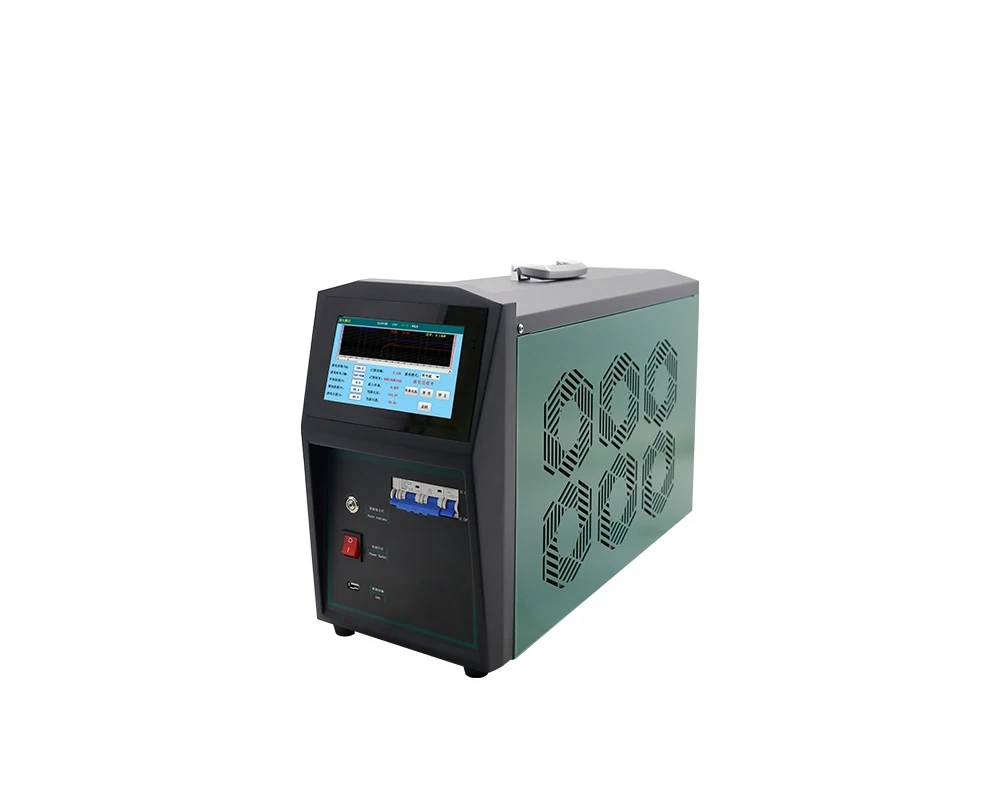

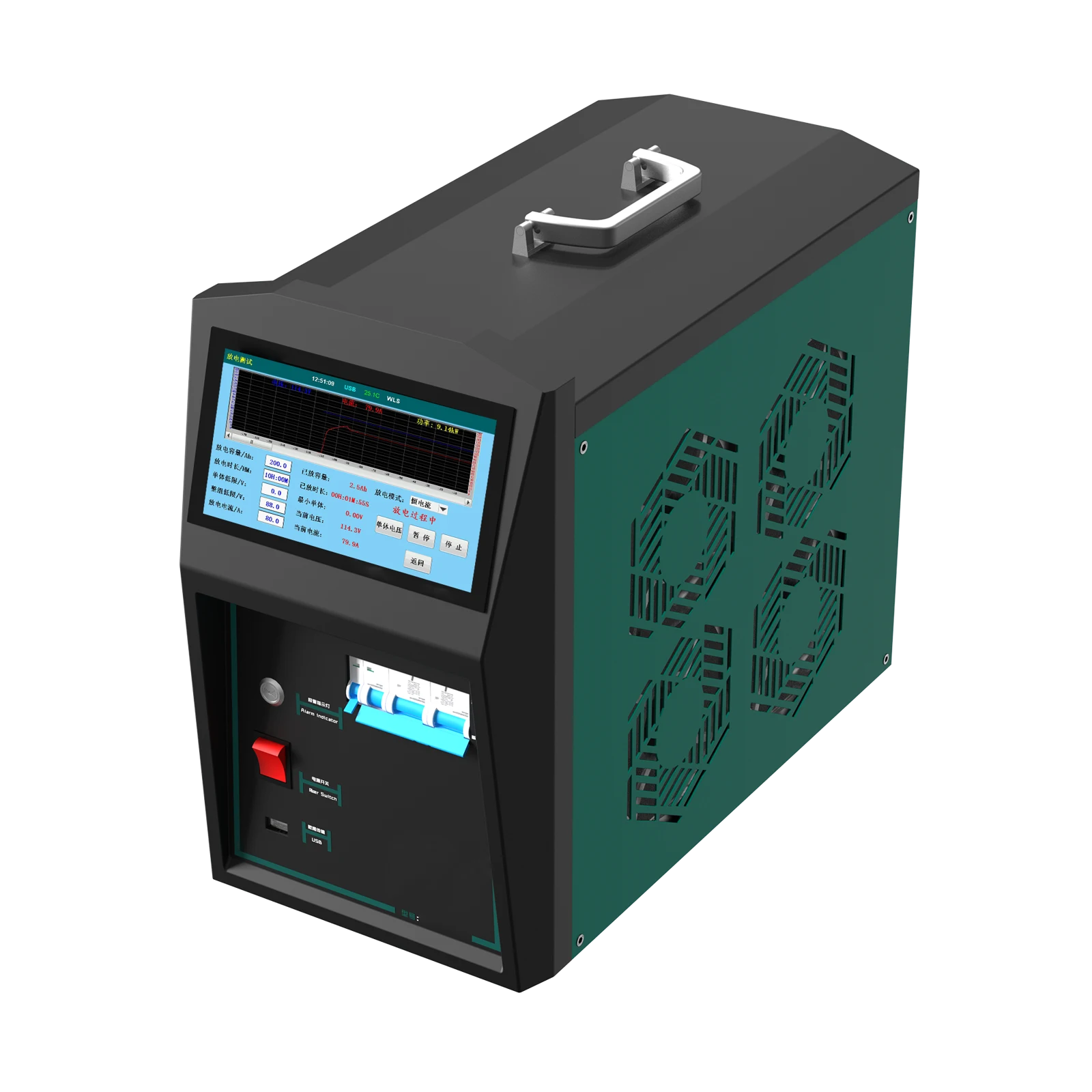

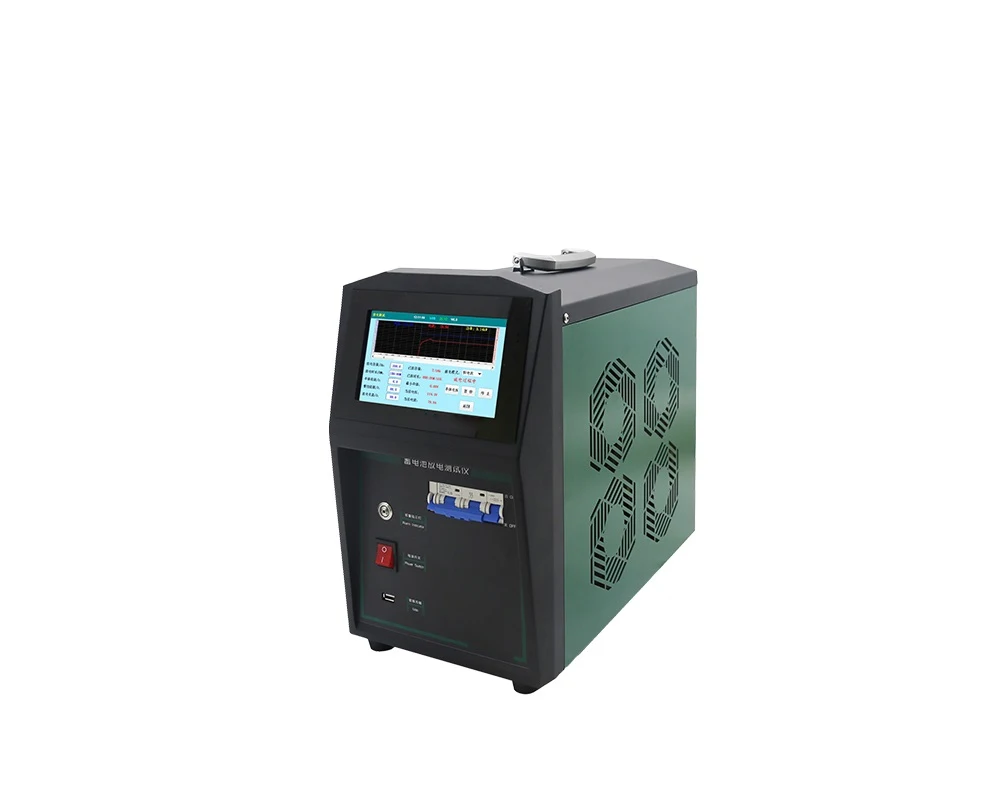

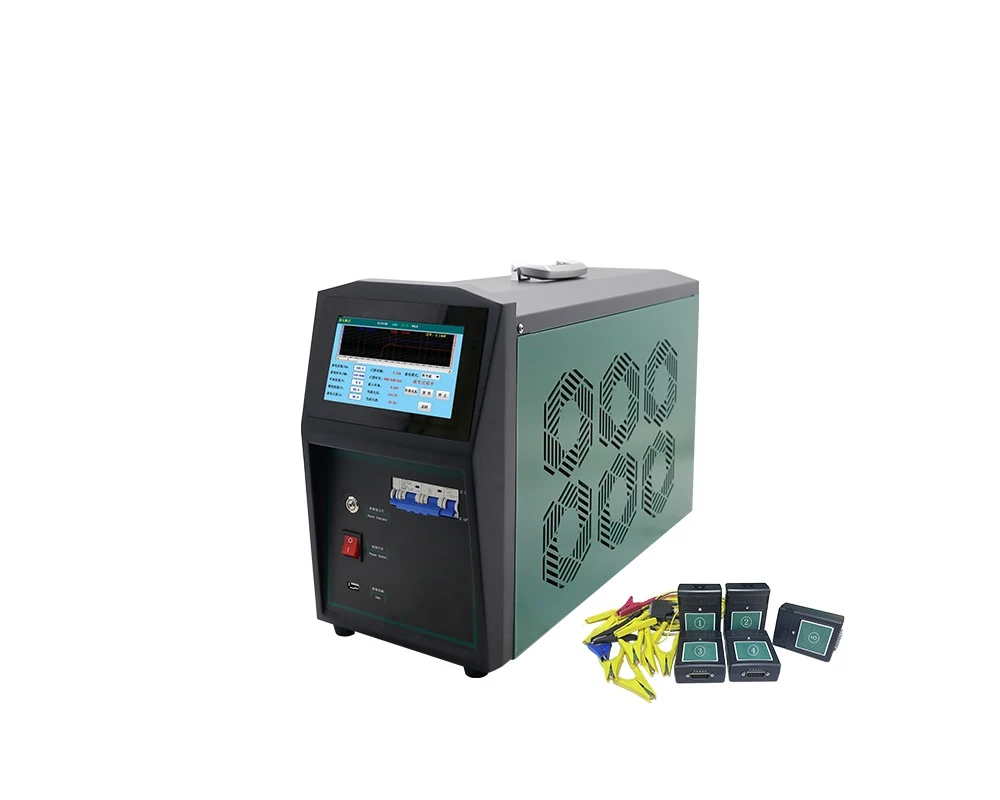

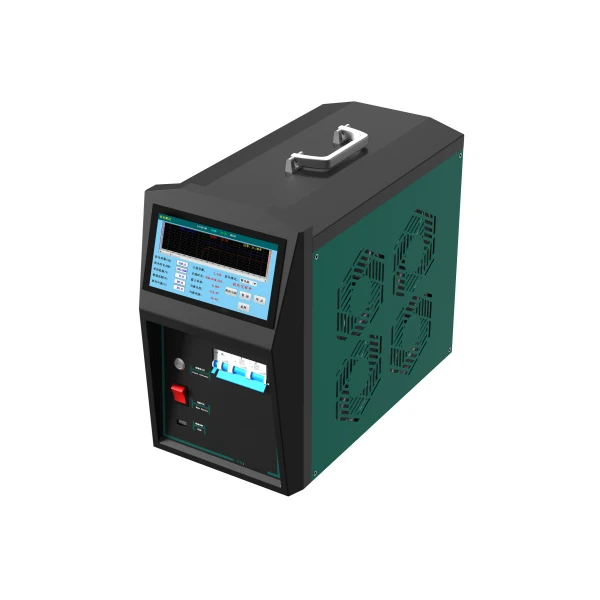

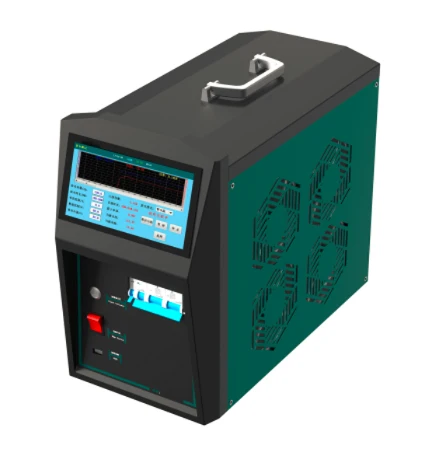

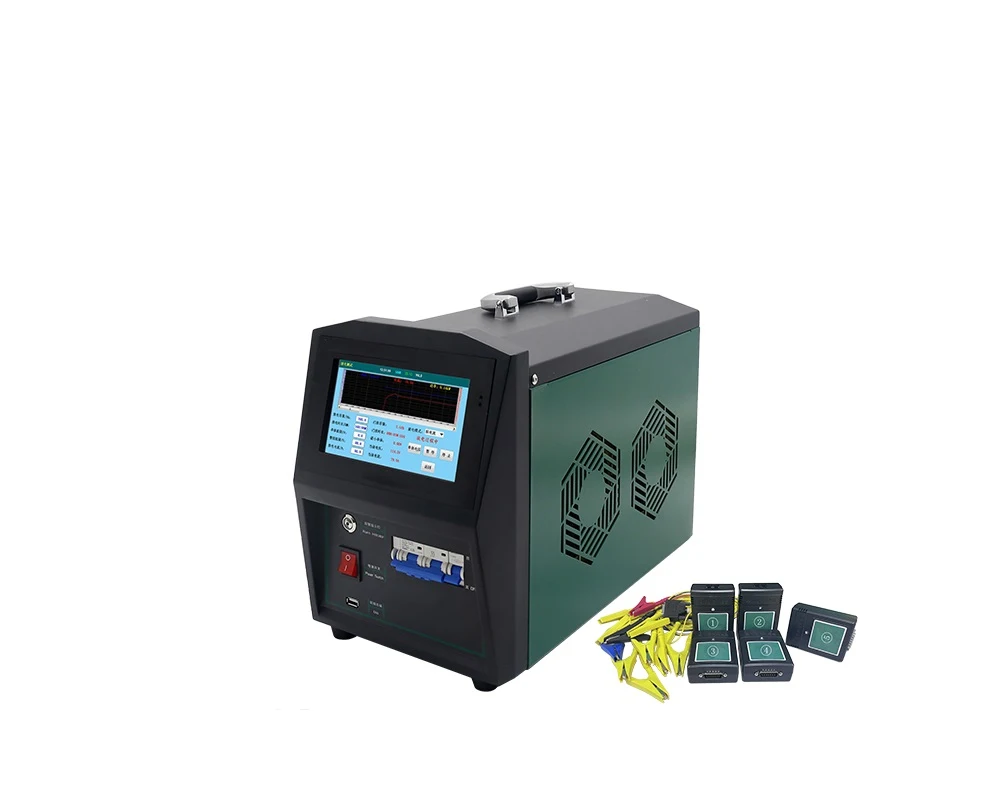

SAT-AG Series Battery Discharge Tester

Key Features

1. Constant-current discharge function, current can be adjusted; 2. Input terminal overvoltage protection, prompts on the LCD; 3. Buzzer alarm for battery voltage reverse polarity protection; 4. Overcurrent protection, prompts on the LCD; 5. Single battery voltage acquisition function, each model for 12 cells. 6. 2Gbit internal data storage space, USB port for testing data download. 7. Comprehensive analysis software for PC. 8. 7inch color touch TFT screen with high performance.

Application Scenarios

1. Daily maintenance and management of batteries 2. Inspection, acceptance, and installation of newly received batteries 3. To provide a basis for scrapping batteries 4. Quality control of battery manufacturers

Optional Function:

1. Internal resistance testing function 2. Online Compensation discharge function

Model No.	AG 24/05	AG 24/15	AG 48/15	AG 48/30	AG 110/05	AG 220/10	AG 380/03	AG 480/10
Output Voltage	24V	24V	48V	48V	110V	220V	380V	480V
Output Current	50A	150A	150A	300A	50A	100A	30A	100A
Control Accuracy	Discharge current: ≤±1%; battery pack’s terminal voltage: ≤ ±0.1%;
	single battery voltage: ≤±0.05%
Communication With The Host PC	RS485 interface
Data Storage Capacity	2Gbit FLASH
Cooling	Forced air cooling
Working Environment	Operating temperature: -5~50℃; storage temperature: -40~70℃
	Relative humidity: 0~90% (40±2℃)
Voltage	Single-phase three-wire system: 220V AC (–20%~+30%); frequency: 45~65Hz;
Withstand Voltage Test	Input--casing: 2200Vdc 1min; Input--output: 2200Vdc 1min;
	Output--casing: 700Vdc 1min
AC Output	Male socket in line with the applicable national standard, applicable to 1~1.5mm2 cable
DC Output	25mm2 cable quick plug (red: positive; black: negative)

*The external load can raise capacity check. *Accept customization service.
